$799
The handy STIHL TSA 230 battery cut-off machine is ideal for construction workers, roofers, gardeners and landscapers, as well as versatile applications in building construction and civil engineering. This includes cutting stone, pipes and iron gratingsas well as tiles, bricks and steel reinforcement meshes.
The 230 mm cutting wheel of the STIHL TSA 230 allows for cutting depths up to 70 mm. The ergonomic handle of the STIHL TSA 230 ensures you can hold it securely and guide it precisely as you cut. The brushless EC motor is practically wear-free. Its electronic control functionalways optimally adaptsthe power and speed to the material to be cut.

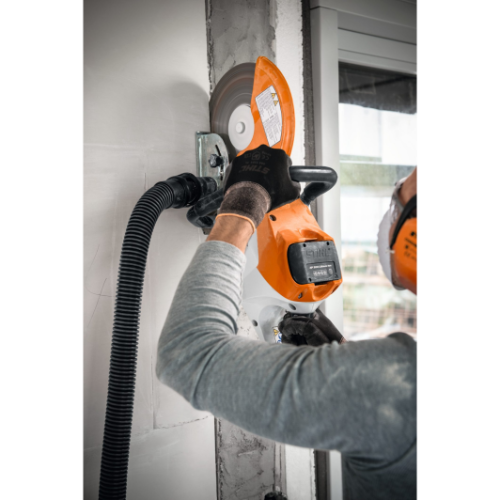

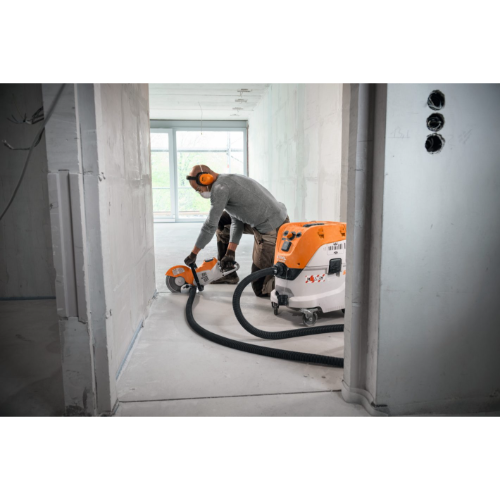

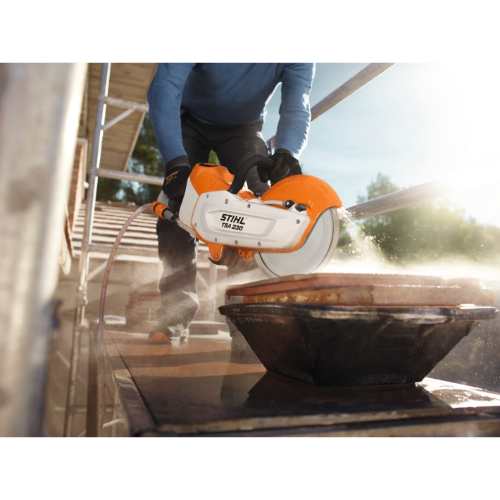

Thanks to its emissions-free operation, the TSA 230 battery cut-off machine can even be used inside buildings, for example in factory halls. In settings like these it is particularly important that dust generated during cutting is immediately boand; The TSA 230 ensures this with an integrated water connection for wetting the cutting wheel. Alternatively, you can reduce dust exposure with the optional STIHL depth stop. This ensures that the resulting dust is fed directly into a connected wet and dry vacuum cleaner, such as the STIHL SE 133 ME.
Changing to a different cutting wheel, such as an optional STIHL D-X100 diamond cutting wheel, is very easy: all you have to do is loosen the spindle lock with a spanner and then tighten it again. Watch our video to see the many possible uses for the STIHL TSA 230 battery cut-off machine.
In our overview of battery life and charging times, you can see how long you can work with your STIHL TSA 230 battery cut-off machine and how long the battery takes to charge.
All battery power tools within the STIHL AP-System have been designed for professional users and daily work, including in adverse weather conditions. With that in mind they are certified as splashproof; the effectiveness of this is also verified through demanding internal checks. The splashwater test is aligned with the IPX4 standard, among others.
| Rated voltage | 36 V |
| Weight | 3.9 kg |
| Battery life with AR 900 | up to 75 min 1) |
| Sound power level | 114 dB(A) |
| Vibration level, left | 3.5 m/s² |
| Vibration level, right | 3.5 m/s² |
| Overall length | 55 cm |
| Cutting disk diameter | 230 mm |
| Max. cutting depth | 70 mm |
| Recommended battery | AP 300 |
| Battery life with AP 100 | up to 7 min 2) |
| Battery life with AP 200 | up to 14 min 2) |
| Battery life with AP 300 | up to 18 min 2) |
| Battery life with AP 300 S | up to 22 min 2) |
| Battery life with AR 1000 | up to 50 min 2) |
| Battery life with AR 2000 | up to 75 min 2) |
| Battery life with AR 2000 L | up to 80 min 2) |
| Battery life with AR 3000 | up to 95 min 2) |
| Battery life with AR 3000 L | up to 125 min 2) |
| IPX Rating | N/A |
